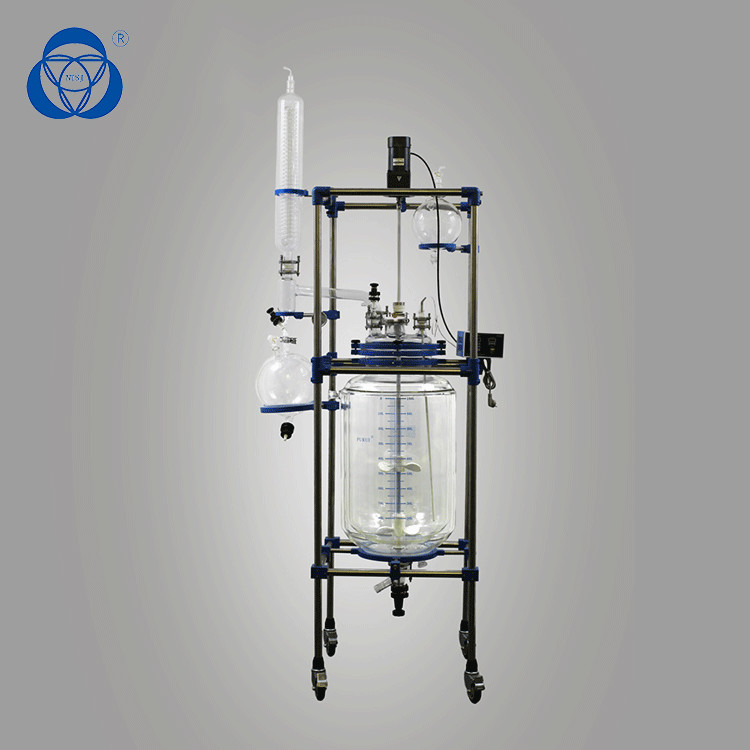

Explosion proof double-layer glass reaction kettle (device) is the company to adapt to the modern pharmaceutical and chemical reaction test production needs.
This series of products using explosion-proof electric machine, explosion-proof inverter and intelligent temperature control box.
PTFE sealing materials, sealing, corrosion resistance, abrasion resistance, frequency control, smooth operation, intelligent temperature sensor, temperature display, large aperture discharge valve, can be put in solid and liquid materials, the main structure is made of stainless steel, Aluminum Alloy.
Main features
Customizable
The whole structure is compact and reasonable, equipped with brake universal wheel, which can move in whole and easy to operate.
No dead angle glass discharge valve, can effectively reduce the dead angle of mixing, convenient discharge.
This product has a vacuum display function, high boiling material can choose the best operating vacuum.
The reaction kettle is made of high borosilicate glass. It has excellent physical and chemical properties. The bottle body is transparent and the reaction liquid is visible.
Product Model |
Volume(L) |
Neck No.on Cover |
External
Diameter of
inner Vessel(mm) |
External
Diameter of
outer Vessel(mm) |
Cover Diameter |
Vessel Height(mm) |
Motor Power(w) |
Vacuum Degree(Mpa) |
Rotation
Speed(rpm) |
Torque(Nm) |
Power(V) |
Dimension(mm) | | | PGR-3 | | 3 | | 4 | | 150 | | 200 | | 150 | | 300 | | 40 | | 0.098 | | 50-1400 | | 0.27 | | 220 | | 320*350*900 | | | PGR-10 | | 10 | | 6 | | 230 | | 265 | | 450 | | 140 | | 0.098 | | 50-600 | | 2.23 | | 220 | | 650*650*1900 | | | PGR-50 | | 50 | | 6 | | 365 | | 410 | | 265 | | 850 | | 140 | | 0.098 | | 50-600 | | 2.23 | | 220 | | 800*600*2300 | | | PGR-100 | | 100 | | 6 | | 460 | | 500 | | 340 | | 950 | | 250 | | 0.098 | | 50-600 | | 3.98 | | 220 | | 1000*700*2700 | | | PGR-200 | | 200 | | 6 | | 600 | | 650 | | 340 | | 1200 | | 750 | | 0.098 | | 50-600 | | 6.37 | | 220 | | 1200*900*3200 | |
Packing and delivery
The normal package is wooden box. If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Our factory
Nantong Sanjing Chemglass Co . Ltd is one of largest professional manufacturers of chemical glass equipments in China.The company specializes in design , production and manufacturing of biological and chemical testing instruments and pharmaceutical glass equipments .
Main products are : glass reactor series , rotary evaporator chemical glass pipes , glass condenser series , glass reaction devices series , bath pots series , heating circulator series , thermostatic bath series , cooling circulator series , constant speed stirrer , water circulation vacuum pumps , lab consumables and other products which are widely used in pharmaceuticals , chemicals , biological pharmacy , new materials , noble metals and other files , meanwhile .
Our service
Customizable
* Inquiry and consulting support. 7*24h online,and reply you within 5 min
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
