PRODUCT DESCRIPTION
The wiped film short path distillation is a process of separation, purification and concentration of natural products, which is characterized by the separation of chemicals at the level of molecular free short route, which is different from the principle of separation by difference of traditional boiling point.As a professional manufacturer, we can offer turnkey solutions for molecular distillation units, including molecular units, vacuum pumps, chillers, heaters, and necessary feeding / receiving components.

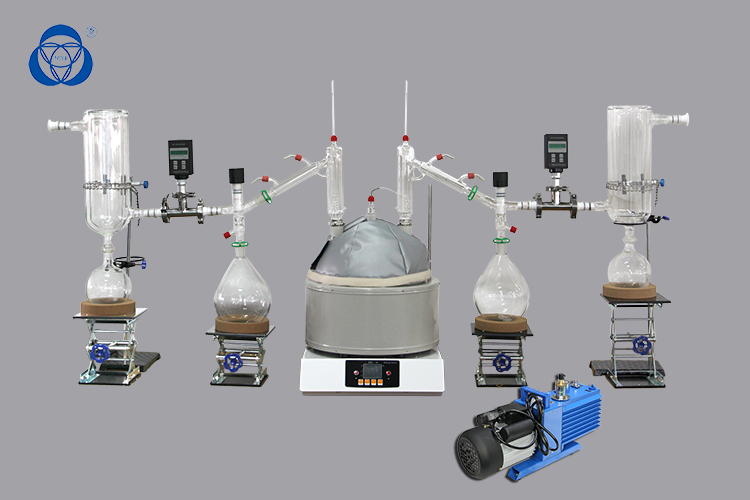

| Part Description | Specification | Quantity |
| Round bottom flask for evaporation | 20L, 3-neck, hand blown, 34/45 | 1 |
| Short path distillation port | Vacuum Jacketed, 34/45 | 2 |
| Screw thermometer inlet adapter | 24/40 | 1 |
| Thermometer inlet adapter | 14/20 | 2 |
| Distillation Cow Receiver 2 | 1-to-1, 24/40 | 2 |
| Round Bottom Flask for receiving | 2000ml, 1-neck, hand blown, 34/35 | 2 |
| Glass Funnel | 4" opening, 24/40 | 1 |
| Keck Clamp 1 | 24/40, Stainless Steel | 1 |
| Keck Clamp 2 | 24/40, Plastic | 6 |
| Keck Clamp 1 | 34/45, Stainless Steel | 2 |
| Hexagonal glass bottle stopper | 14/20 | 2 |
| Hexagonal glass bottle stopper | 24/40 | 1 |
| Cork Ring Stand for Flask 2 | 1pc 110mm,1pc 160mm | 4 |
| Silecone tubing | 8x14mm | 1 |
| Stainless steel lab jak | 1pc 15x15cm,1pc 20x20cm | 2 |
| Glass termometer | 300 degree | 2 |
| Sealing gasket for screw thermometer inlet adapter | 24/40 | 10 |
| Clamp holder | | 2 |
| Lab support stand | | 1 |
| 3-prong condenser clamp | | 2 |
| Glass T adaper | 3/8'' | 2 |
| Vacuum grease | | 1 |
| 1/2'' fiberglass insulating rope | | 10 |
| Glass cold trap | T-20 | 1 |
| Desktop precise heater/chiller | 15L, -5 to 95 degree centigrade | 1 |
| Rotary vane oil pump | 8.4CFM(4L/S), 2-stage, 220 V | 1 |
Features
※ The evaporation effciency is very high,which can reduce the retention time and has the minimum time delay.
※ The molecular distillation syetem is composed of high borosilicate glass3.3,316L stainless steel and PTFE,so it has excellent corrosion resistance.
※ The high-precision distiller barrel enables the liquid to from a complete integrated film on the heating surface.
※ The inner wall of the barrel is smooth and clean, and the inner wall is smooth and bright,which is not easy to stick and scale.
※ The distance between the distillation suiface and the condensation surface of the distillation srface and the condensation surface of the distiller barrel is short, which facilitates the movement of light component molecules to the condenser surface, and is higher than the distillation efficiency of similar products on the market.
※ Customizable

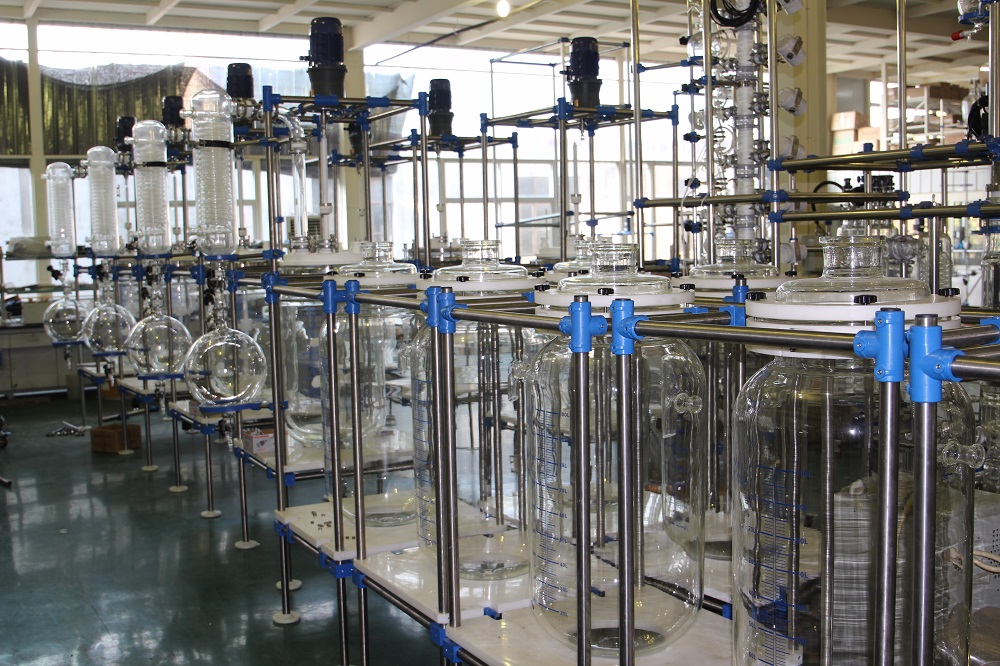

OUR FACTORY
Sanjing Chemglass is one of the leading and professional manufacturers and traders specialized in research, development and production of chemical glass instrument in China. Main products include high-end customized glass reactor, wiped film evaporator, rotary evaporator, short path molecular distillation and chemical glass accessory which has received the certification of ISO9001, CE and BV. The founder of Sanjing Chemglass Mr. Xing has over 30 years relevant experience.
Sanjing Chemglass is able to provide professional service with design, manufacturing, equipment selection, instrument supporting, installation, debugging and maintenance. Our chemical glass instruments have been widely used in the fields of pharmaceuticals, chemicals, biological pharmacy, CBD oil purification and new material.
SHIPPING AND PACKAGE
We are experienced in the whole packing and shipping process, and we will be responsible for any damage made during shipping and send clients replacements for free.
* Sufficient inner protection with different materials, including bubble bag, foam board and others.
* Qualified wooden package or carton for different products or as customer require
* Strict packing process to ensure the safety and completeness of the goods
Service
· Free 24-hour technical support
· Training how to install the machine and how to operate
· 1 year complimentary warranty
· Quick response for detailed quotation and solutions according to clients' requirements.Confirm price, quantity, shipment, lead time and payment terms.
· Inquiry and consulting support.
